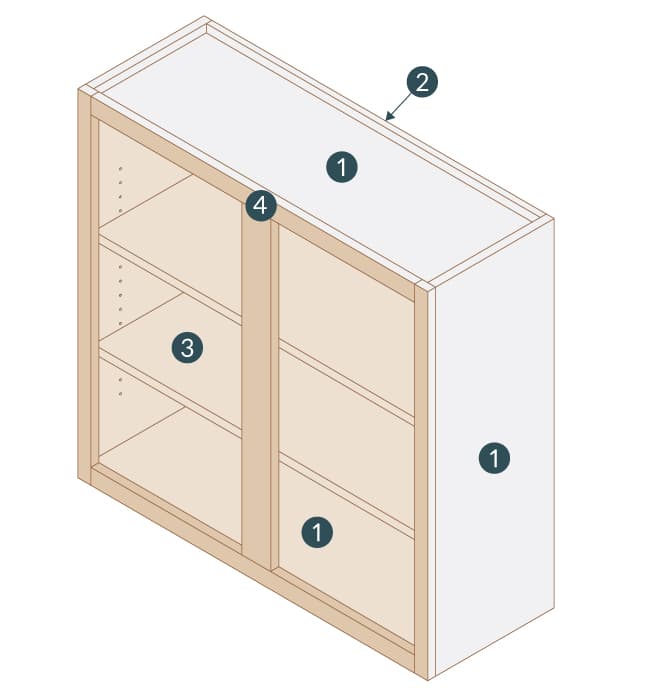

WALL CABINETS
- 1/2″ Top, bottom and sides (Finished sides are flush and 3/4″ thick),1/2″ Full back,3/4″ Particle board shelves (Plywood construction upgrade option shelves are NAF Plywood),3/4″ Thick solid wood face frame
IZZA Cabinet
Affordable Custom Construction Details
Current & Frameless Current cabinet construction and feature details.
Affordable Custom
CURRENT
Framed construction with natural maple melamine interior, overlaying particle board. Construction upgrade option available to NAF (No Added Formaldehyde) plywood with natural basswood veneer interior.

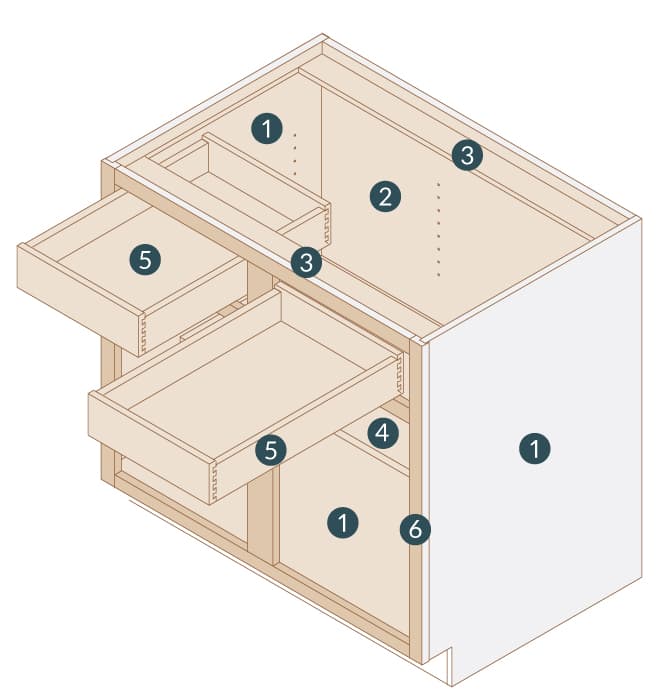

BASE CABINETS
- 1/2″ Bottom and sides (Finished sides are flush and 3/4″ thick),1/2″ Full back,3/4″ Stretchers provide support,3/4″ Particle board shelves (Plywood construction upgrade option shelves are NAF Plywood),Dovetailed drawers are 5/8″ solid hardwood sides, front and back, bottom is 1/4″ veneered. Feature concealed, under mount, full extension guides with integral soft close.,3/4″ Thick solid wood face frame,Width, height and depth modifications available.,Inset styling available.,19 door styles. Several styles available in both stain and paint.,11 stains and 10 paints featuring an oven cured, catalyzed conversion varnish top coat.,Matching interior available for both particle board and plywood options.,Standard soft close drawers featuring Hettich® engineering.,Soft close door upgrade available featuring Hettich® engineering.
CURRENT Cabinet Diagrams
Affordable Custom
FRAMELESS CURRENT
Frameless construction with natural maple melamine interior, overlaying particle board. Construction upgrade option available to NAF (No Added Formaldehyde) plywood with natural basswood veneer interior.

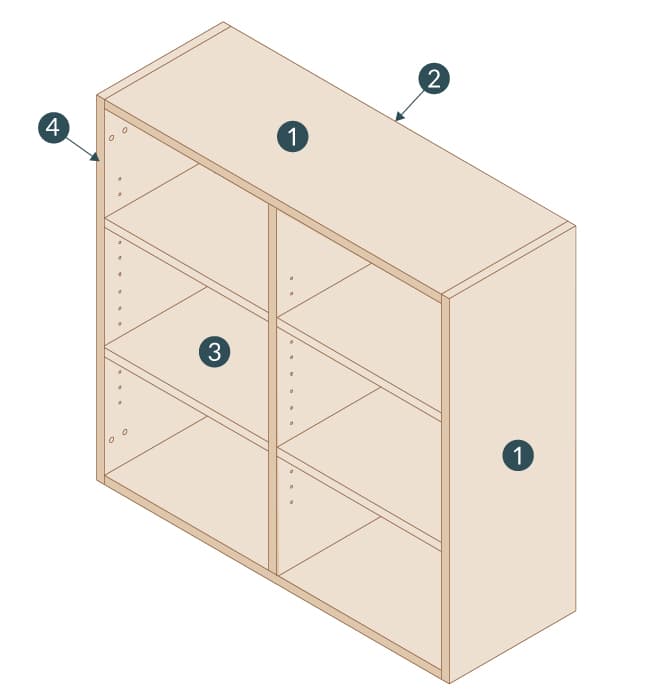

WALL CABINETS
- 3/4″ Top, bottom and sides,1/2″ Full back,3/4″ Particle board shelves (Plywood construction upgrade option shelves are NAF Plywood),Matching edge tape

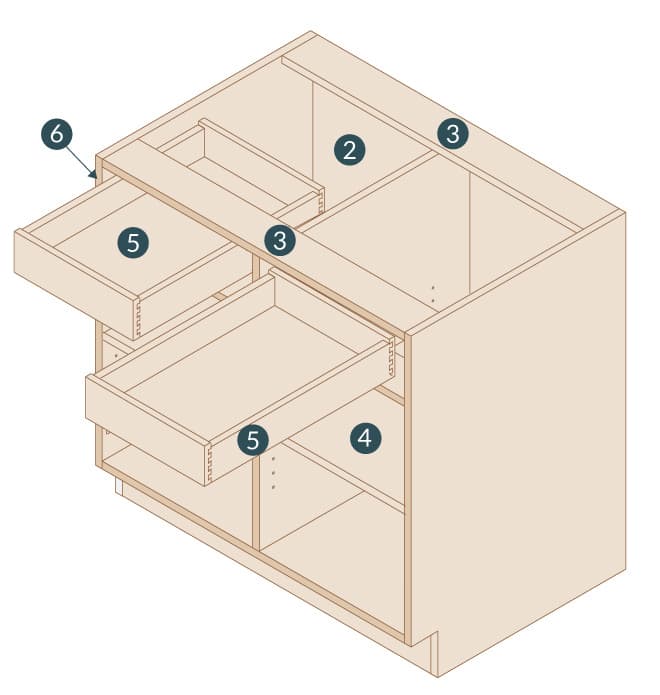

BASE CABINETS
- 3/4″ Bottom and sides,1/2″ Full back,3/4″ Stretchers provide support.,3/4″ Particle board shelves (Plywood construction upgrade option shelves are NAF Plywood),Dovetailed drawers are 5/8″ solid hardwood sides, front and back, bottom is 1/4″ veneered. Feature concealed, under mount, full extension guides with integral soft close.,Matching edge tape,Width, height and depth modifications available.,24 door styles. Several styles available in both stain and paint.,11 stains and 10 paints featuring an oven cured, catalyzed conversion varnish top coat.,Slab door options featuring contemporary melamines and laminates.,Matching interior available for both particle board and plywood options.,Standard soft close drawers featuring Hettich® engineering.,Soft close door upgrade available featuring Salice® engineering.,Particle board construction with white melamine interior option.
FRAMELESS CURRENT Cabinet Diagrams
